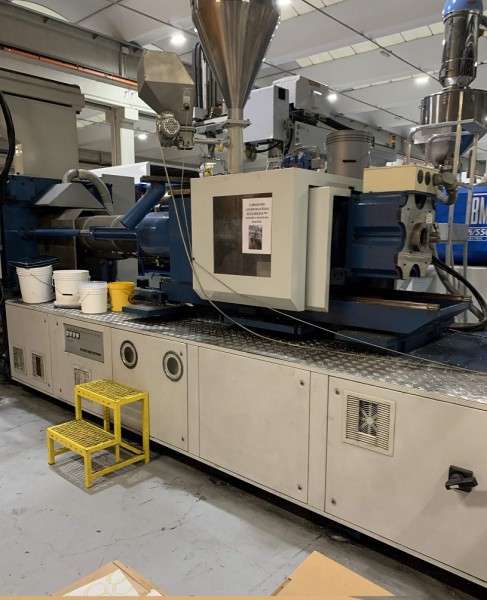

ISLAND OF PRODUCTION COMPLETE WITH PRESS MAICO SPRINT L 450 IM

ISLAND OF PRODUCTION COMPLETE WITH PRESS MAICO SPRINT L 450 IM -CE- AND IROBI SPECIAL EQUIPMENT IML

HYDRAULIC INJECTION PRESS AND AUTOMATIONS

Closing force: 4500 Kn
Opening stroke: 1000 mm
Min / max mold thickness: 350/950 mm
Distance between the plates: 1950 mm
Distance between columns: 750 x 710 mm
Mold holder plate (LxH): 1140 x 1100 mm
Max extraction stroke: 250 mm
Extraction force: 40 Kn
Closing system: Hydraulic knee brace
Pump motor: 120 Kw
Maximum installed power: 180 Kw

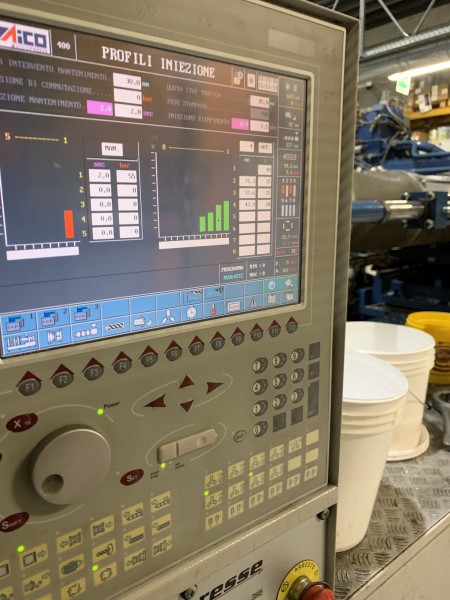

Control Type: Moog
Oil tank: 680 Lt Lamination engine: electric
Injection unit: 4900 H
Screw diameter: 85 mm
Screw length L / D: 25 L / D
Max volume: 2380 cm3
Max injectable weight: 2237 g / ps
Max injection pressure: 2050 bar
Accessories: Jack core, Blower area, Robot interface, shutter nozzle
HOURS WORKED: 42.500
Weight: 18 + 10 tons
Overall dimensions: 9.170 x 1.990 x 2.660 mm Automation for the application of IML labels on truncated cone containers consisting of: 2 IROBI robots, label loading bench, conveyor belt for evacuation of finished pieces, and perimeter protections (all CE)
PRESS ROBOT: IROBI 115 JS 3 axes
Y axis: 2500 mm
X axis: 1000 mm
Z axis: 1050 mm
Maximum load: Kg. 15
Exhaust tilting axis 0-90: No
Rotation axis 0-270: No
Vacum circuits: Yes
Gripper control circuits: Yes
Weight: Kg. 600
PALLETIZER ROBOT: IROBI 80 JS
Y axis: 2000 mm
X axis: 800 mm
Z axis: telescopic 1650 mm
Maximum load: Kg. 8
Exhaust tilting axis 0-90: No
Rotation axis 0-270: Yes pneumatic
Vacum circuits: Yes
Gripper control circuits: Yes
Weight: Kg. 800

Year: 2011

Make: MAICO / IROBI
