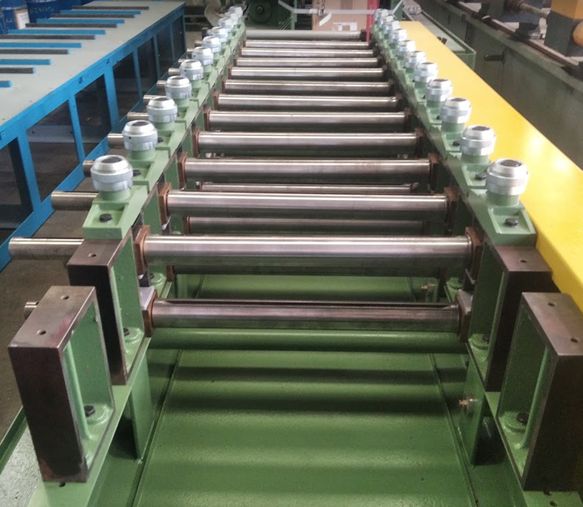

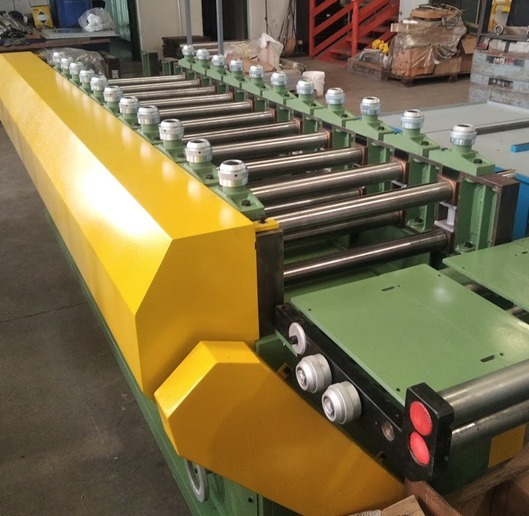

Rossi Mechanical Roll Forming Machine 11 Passes

Rossi Mechanical Roll Forming Machine 11 passes - ref. M009

Shaft diameter ØD mm 55
Useful shaft width L mm 530
Operator side RH sheet infeed

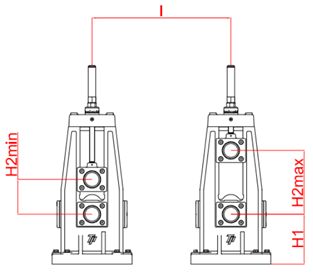

Longitudinal center distance I mm 200
Vertical center distance H2min mm 140
H2max mm 140
H1 mm

Notes:

Overhauled LIKE NEW (bushings)
Cantilever/protruding shafts ØD mm 40 with useful shaft width mm 135
Electrical panel and decoiler not included

Make: Meccanica Rossi
